Advance Hydraulic Spindles TMHS100

SKU:ADV000001

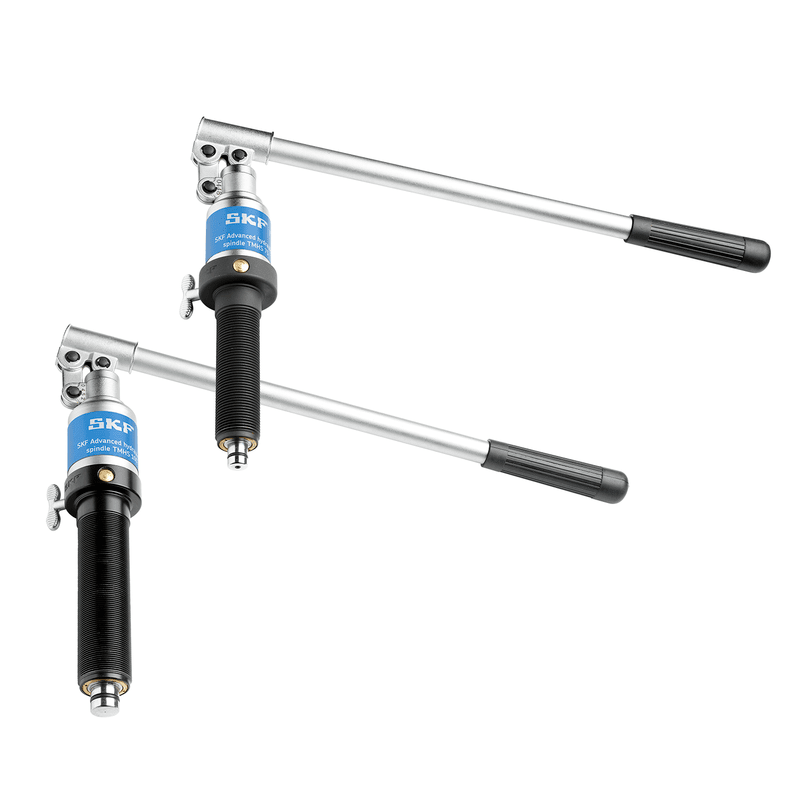

The SKF advanced hydraulic spindles TMHS 75 and TMHS 100 generate a high pulling force with very little effort compared to the standard mechanical spindles. They dramatically reduce the time needed to dismount a bearing or other component. The spindles are equipped with integrated hydraulic pumps for force generation. Maximum pulling forces are limited by special safety valves and the hydraulic oil will remain inside the pump.
Call for price
Manufacturer : SKF

Description

Effortless withdrawal force generation

The SKF advanced hydraulic spindles TMHS 75 and TMHS 100 generate a high pulling force with very little effort compared to the standard mechanical spindles. They dramatically reduce the time needed to dismount a bearing or other component. The spindles are equipped with integrated hydraulic pumps for force generation. Maximum pulling forces are limited by special safety valves and the hydraulic oil will remain inside the pump.

  • Integrated hydraulic cylinder, pump and spindle - no separate pump is required
  • Safety valve helps prevent overloading the spindle and the puller in case excessive force is applied
  • Spring-loaded centre point in the nosepiece allows easy centring of the puller on the shaft without damaging shaft centre point
  • Hand lever with ergonomic grip can be rotated 360°
  • Hardened and chrome plated piston with spring return function
  • Extension pieces included allows easy adaptation for the required pulling length
TMHS 75
  • The TMHS 75 has a maximum withdrawal force of 75 kN (8.4 ton (US)) and a long stroke length of 75 mm (3.0 in), which allows dismounting in one operation
  • Suitable for use with any puller equipped with a UN 1¼" × 12 tpi threading that can be used up to the maximum force of 75 kN (8.4 ton (US))
  • Delivered with a 50 (2.0 in) and 100 mm (3.9 in) extension piece
TMHS 100
  • The TMHS 100 has a maximum withdrawal force of 100 kN (11.2 ton (US)) and a long stroke of 80 mm (3.1 in), which allows dismounting in one operation
  • Suitable for use with any puller equipped with a UN 1½" × 16 tpi threading that can be used up to the maximum force of 100 kN (11.2 ton (US))
  • Delivered with a 50 (2.0 in), 100 mm (3.9 in) and 150 mm (5.9 in) extension piece
MEC0046V_NG-TMHS75-16x9.png MEC0045V_NG-TMHS100-16x9.png
TMHS 75 TMHS 100

SKF FORCE GENERATOR SELECTION
Puller Mechanicalspindle TMHS 75 TMHS 100
TMMA 60 X
TMMA 80 X O
TMMA 120     O
TMMA 75H   X
TMMA 100H     X
TMMA 75H/SET   X
TMMA 100H/SET     X
TMBS 50E X
TMBS 100E     X
TMBS 150E     X
TMHC 110E     X
TMHP 10E     X
X = Supplied standard with puller
O = Optional accessory for puller



TECHNICAL DATA
Designation TMHS 75 TMHS 100
Contents 1 × hydraulic spindle 1 × hydraulic spindle
2 × extension pieces; 50 and 100 mm (2.0 and 3.9 in.) 3 × extension pieces; 50, 100 and 150 mm (2.0, 3.9 and 5.9 in.)
1 × nosepiece 1 × nosepiece
Maximum withdrawal force 75 kN (8,4 ton US) 100 kN (11.2 ton US)
Piston stroke 75 mm (3.0 in.) 80 mm (3.1 in.)
Body thread UN 11/4 × 12 UN 11/2 × 16
Nose piece diameter 35 mm (1.4 in.) 30 mm (1.2 in.)
Maximum reach 229 mm (9.0 in.) 390 mm (15.4 in.)
Weight 2,7 kg (6.0 lb) 4,5 kg (10.0 lb)



SPARE PARTS
Designation Desciption Suitable for
TMHS 5T Set containing extension pieces 50 and 100 mm and the nosepiece TMHS 75
TMHS 8T Set containing extension pieces 50, 100 and 150 mm and the nosepiece TMHS 100
TMHS 100-1   Advanced hydraulic spindle, 100 kN, spindle only TMHS 100
